When it comes to home electrical wiring, a 2 switch and 2 socket wiring connection is one of the most common setups used in houses, offices, and workshops. It allows you to control two different sockets with the help of two switches, making it safe and convenient for operating electrical appliances.
In this article, we will explain how the connection works, the required materials, and a step-by-step guide for wiring.
🔌 What is a 2-Switch, 2-Socket Connection?
This type of wiring includes:
- 2 switches – Each switch controls the flow of electricity to a socket.
- 2 sockets (outlets) – You can plug in appliances like fans, lights, TV, or chargers.
- Live, Neutral, and Earth wires connected properly for safety.
In simple terms, each socket is connected to a separate switch, so you can turn ON/OFF the power individually.
⚡ Required Materials
- 2 electrical switches
- 2 sockets (5A/15A depending on your usage)
- Electric wires (Red for Live, Black for Neutral, Green for Earth)
- Plug top (for main supply)
- Insulation tape and basic tools

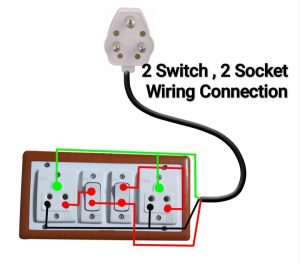

🛠 Wiring Diagram Explanation
Refer to the wiring diagram shown in the image above:
- Live Wire (Red): The main live wire is connected to the input terminal of both switches. From each switch, an output wire goes to the live terminal of each socket.
- Neutral Wire (Black): The main neutral wire is connected directly to the neutral terminals of both sockets.
- Earth Wire (Green): The main earth wire is connected to the earth terminal of both sockets for safety.
✅ Step-by-Step Connection
- Connect the main live wire to the common terminal of both switches.
- From the switch output, connect wires to the live terminals of each socket.
- Connect the neutral wire directly from the supply to both socket neutral points.
- Connect the earth wire from the supply to the earth points of both sockets.
- Tighten all screws properly and use insulation tape where required.
- Test the connection by plugging in appliances – each switch should control its own socket.
🔒 Safety Tips
- Always switch OFF the main power before working on wiring.
- Use proper wire gauge according to the load (e.g., thicker wire for heavy appliances).
- Ensure proper earthing to avoid electric shocks.
- If unsure, consult a qualified electrician.
📌 Conclusion
A 2 switch, 2 socket wiring connection is very useful in daily life, as it allows you to operate two devices separately with safety and convenience. By following the correct wiring method and safety rules, you can easily set up this connection at home or in the workplace.
